Add a distinctive cutting and edge-finishing disc to stone and tile accessory programs.
100-230mmSeries RangeFinal diameter confirmed by selected item
2-SideAbrasive LayoutTriangular diamond zones on both working faces
Cut + GrindDual FunctionControlled cutting and light edge finishing
OEMWholesale SupportLabel, barcode, sleeve and carton marks
Product Overview

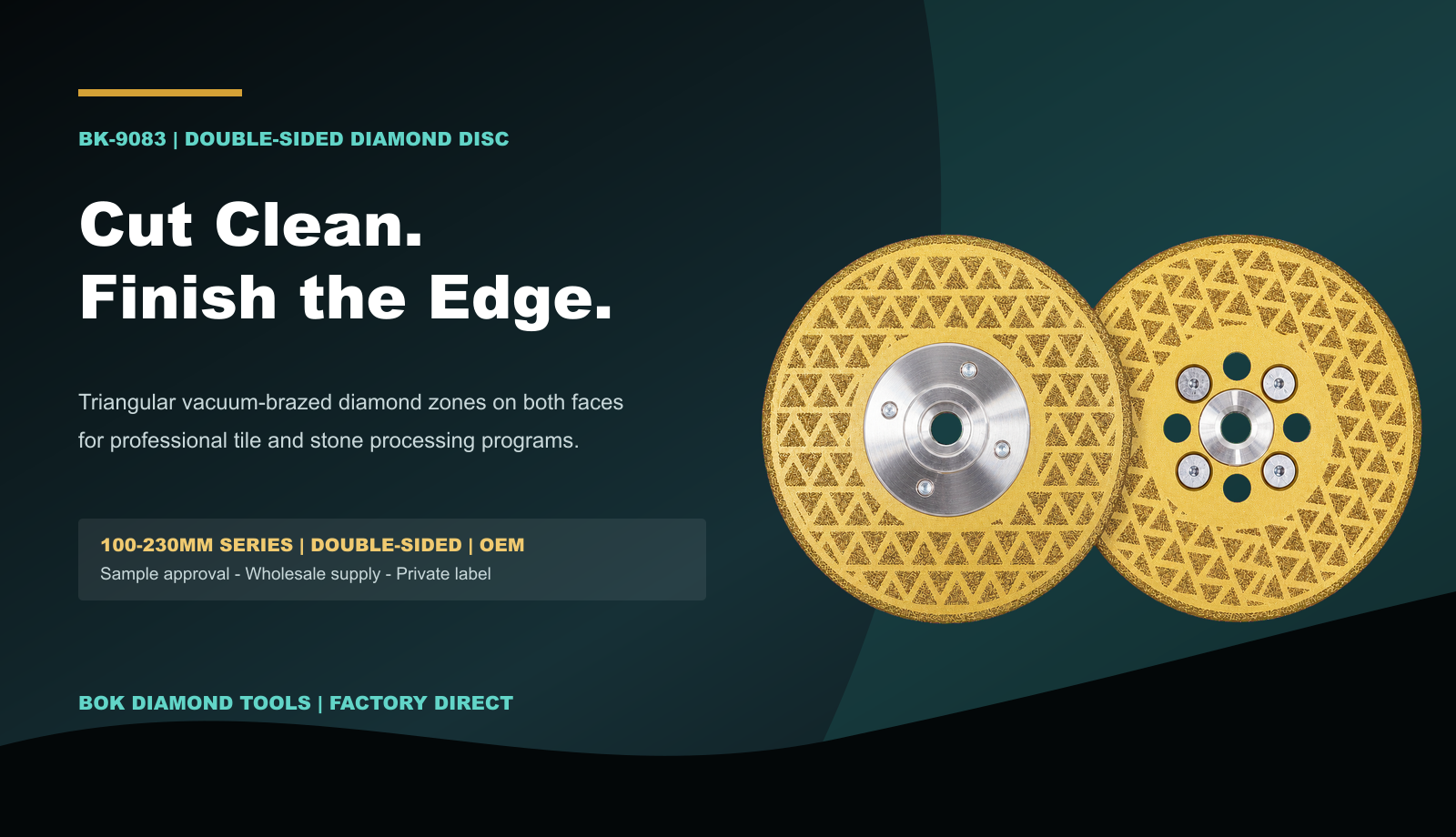

BK-9083 Full-Star Diamond Disc
A double-sided steel disc with concentric triangular vacuum-brazed diamond zones. The open gold channels separate the abrasive cells while the machined mounting assembly supports stable installation on an approved guarded tool.
Supply a clearly identified series with controlled dimensions and packaging data.
Evaluate cutting speed, edge finish and abrasive consistency against an approved sample.
Confirm diameter, mounting configuration, artwork, barcode and carton marks before production.
Engineering Structure
Double-Sided Abrasive Coverage
Triangular diamond cells create repeated cutting and grinding contact across both faces. Smooth channels between the cells help separate the working zones and make batch inspection straightforward.
- Porcelain Tile
- Ceramic
- Marble
- Granite
- Engineered Stone
- Quartz Slab
Dense, visibly defined abrasive particles are arranged in concentric triangular zones.
Abrasive coverage on both sides supports controlled cutting and light edge finishing.

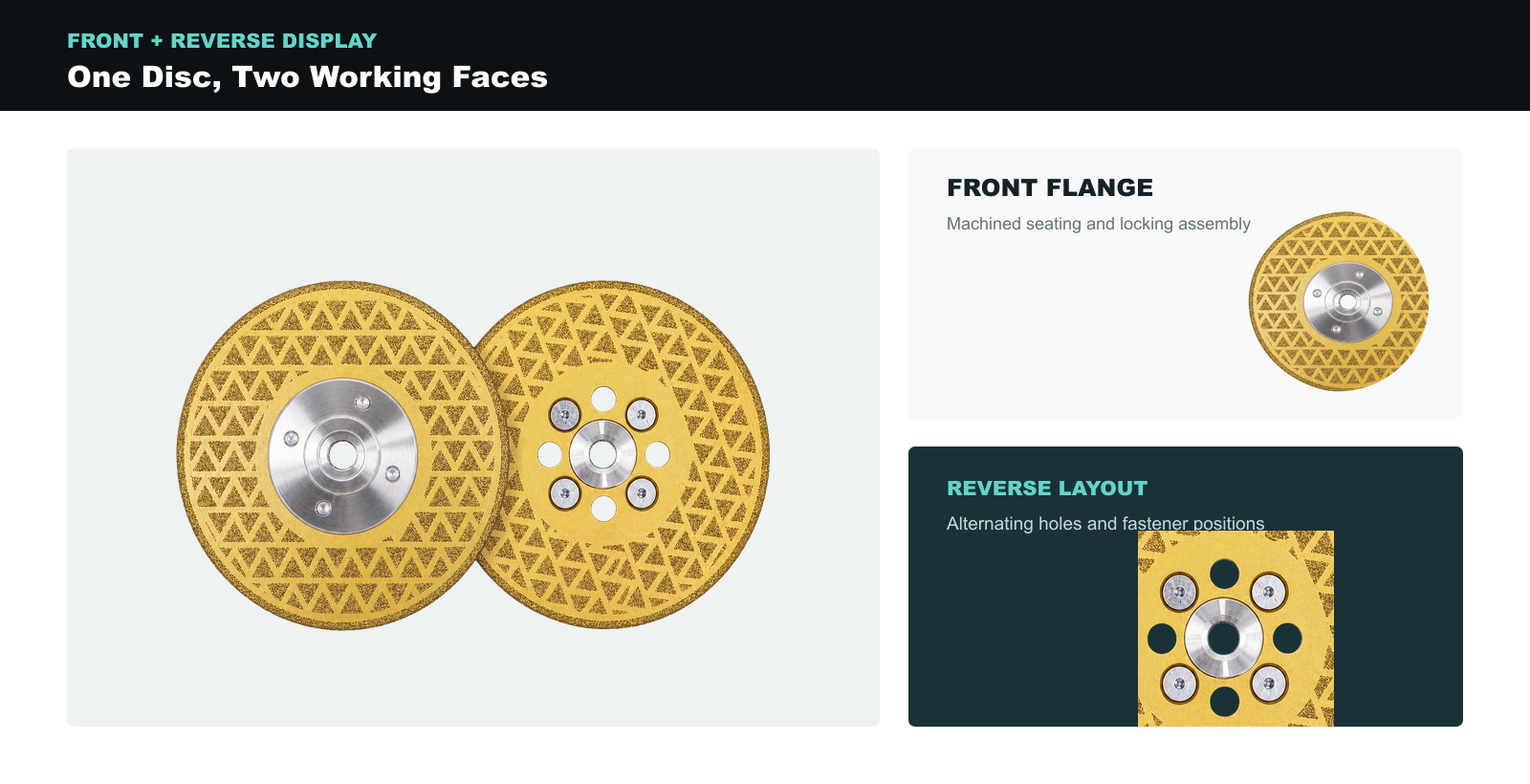

The polished center assembly provides a clear seating and locking area.
Alternating holes and fastener positions provide an identifiable inspection pattern.

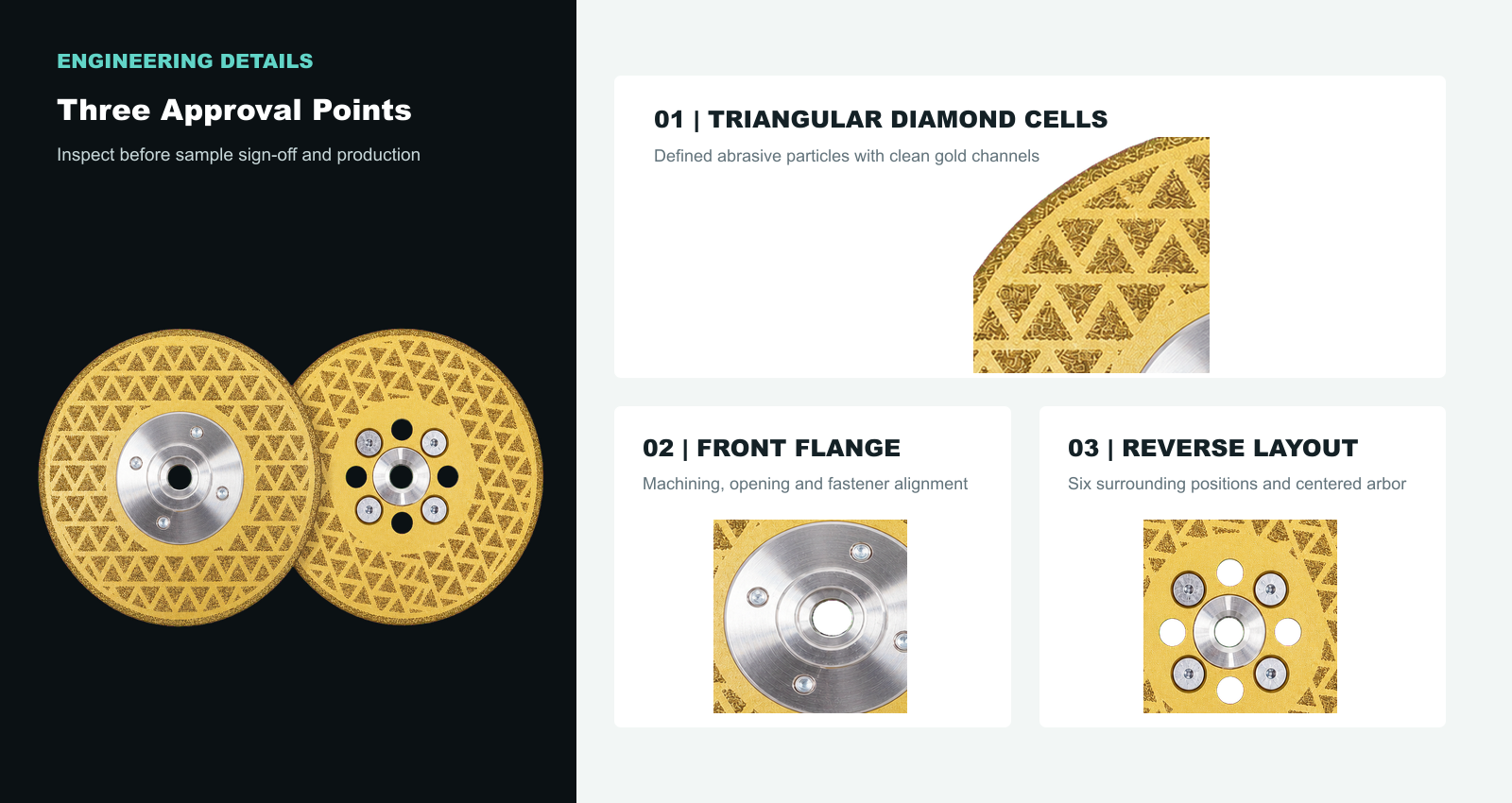

Close-Up Inspection
Three Details Buyers Can Approve
Diamond cell texture, front flange machining and reverse-side hole layout are separated for sample approval and bulk-order comparison.

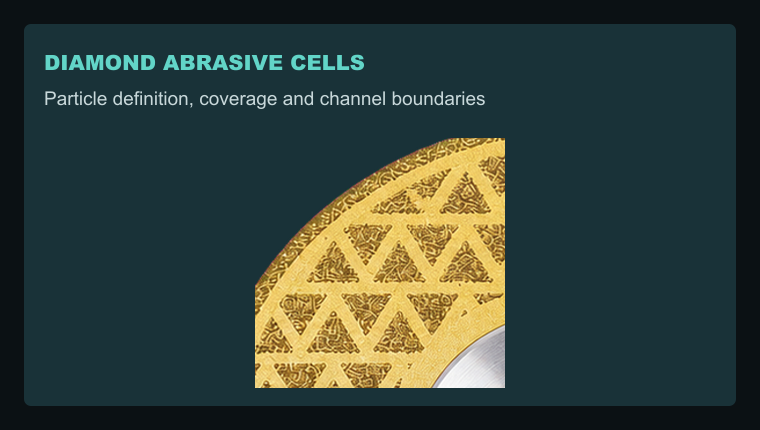

Working SurfaceDefined Diamond Texture
Check particle visibility, cell boundaries, distribution and uncoated channels against the approved sample.

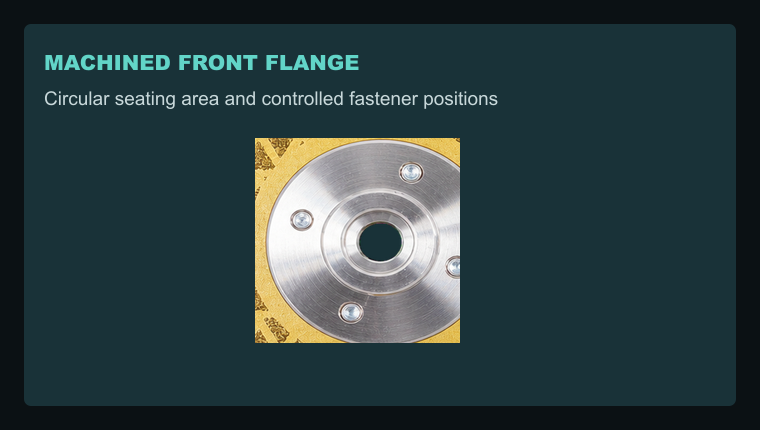

Front MountingMachined Flange Assembly
Confirm circularity, arbor opening, fastener positions and clean flange contact surfaces.

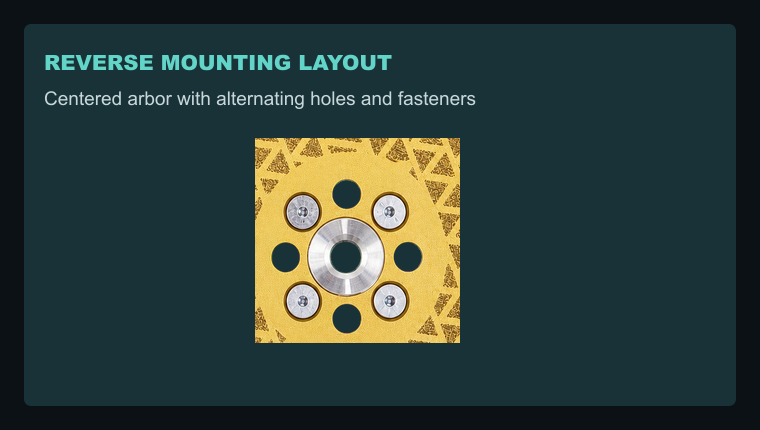

Reverse FaceSix-Position Layout
Confirm alternating holes and fastener discs, center alignment and unobstructed openings.

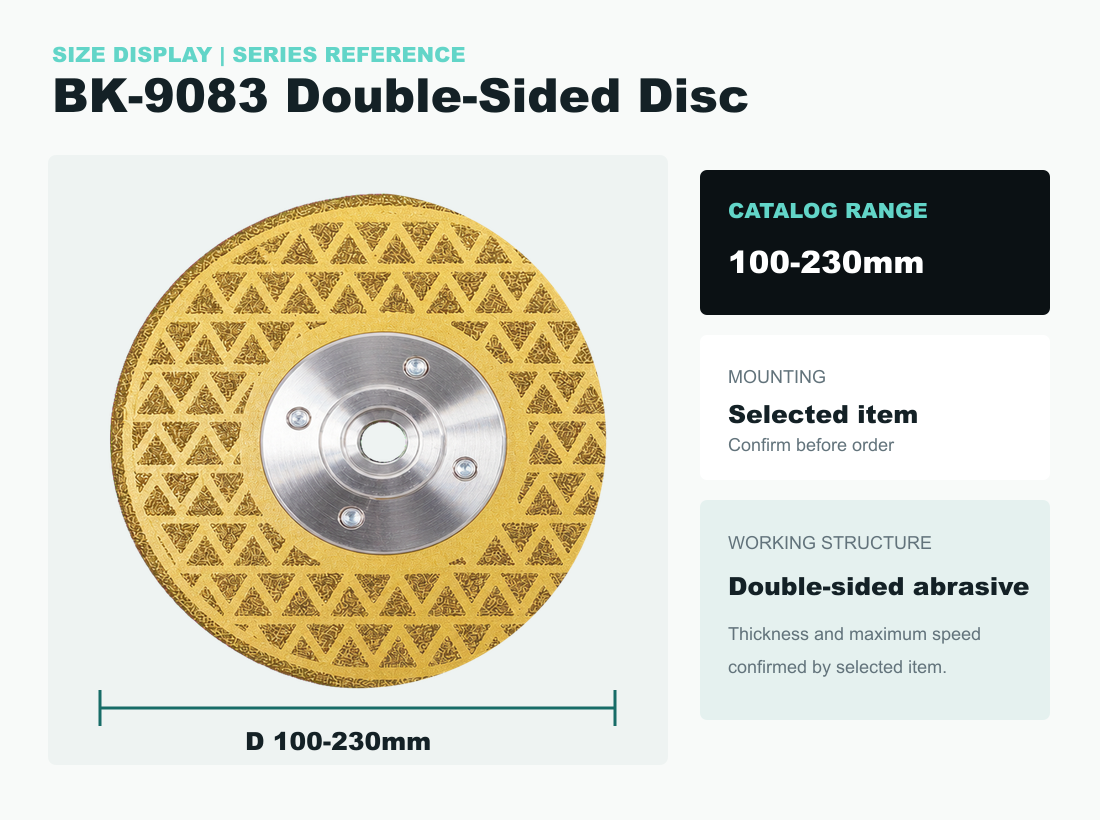

Technical Data
Series Range and Order Confirmation
The catalog series covers 100-230mm. Final diameter, thickness, mounting system, maximum operating speed and compatible tool must be confirmed against the selected item and approved sample.
ModelBK-9083
- Product
- Double-Sided Diamond Cutting and Grinding Disc
- Catalog Diameter Range
- 100-230mm
- Mounting Configuration
- Confirmed by selected diameter and approved sample
- Core Material
- Steel disc with machined metal mounting components
- Abrasive Structure
- Triangular vacuum-brazed diamond zones on both faces
- Primary Operations
- Controlled cutting and light edge grinding on approved materials
- Operating Method
- According to selected item, tool manual and approved test sample
- Customization
- Item label, barcode, sleeve artwork, inner box and carton mark
Compatibility noteMatch diameter, mounting system, guard and maximum speed to the tool manufacturer requirements. Do not install until all specifications are confirmed.
Information required for an accurate quotationDiameterMountingThicknessQuantityPackagingDestination

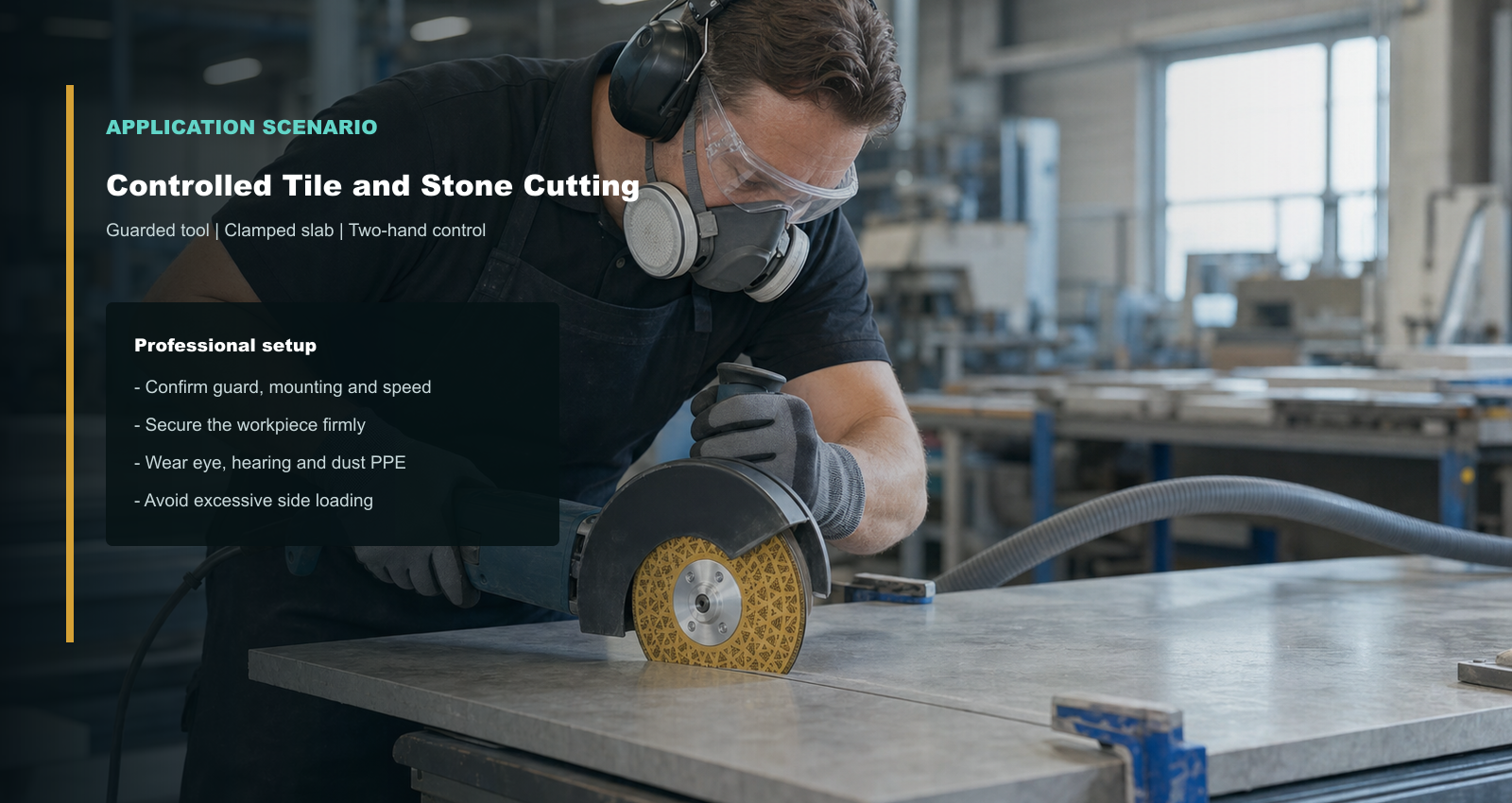

Application Scenario
Controlled Cutting in a Professional Workshop
A guarded tool, secured workpiece and correct personal protective equipment are essential parts of the product presentation and the real operating process.
Operating note
Use only with a compatible guarded tool. Secure the workpiece, wear eye, hearing, respiratory and hand protection, keep both hands on the tool and avoid excessive side loading. Follow the tool and accessory manufacturers' instructions.
Factory Supply Control
Five Checks Before Packing
Bulk orders are compared with the approved sample for geometry, abrasive coverage, mounting components, flatness and packaging.
Confirm outer diameter, thickness and selected mounting configuration.
Check cell definition, particle distribution, brazing consistency and missing areas.
Inspect disc circularity, warpage and visible deformation against the sample.
Check flange, center opening, holes and fasteners for alignment and obstruction.
Confirm label, barcode, quantity, carton weight, dimensions and shipping marks.

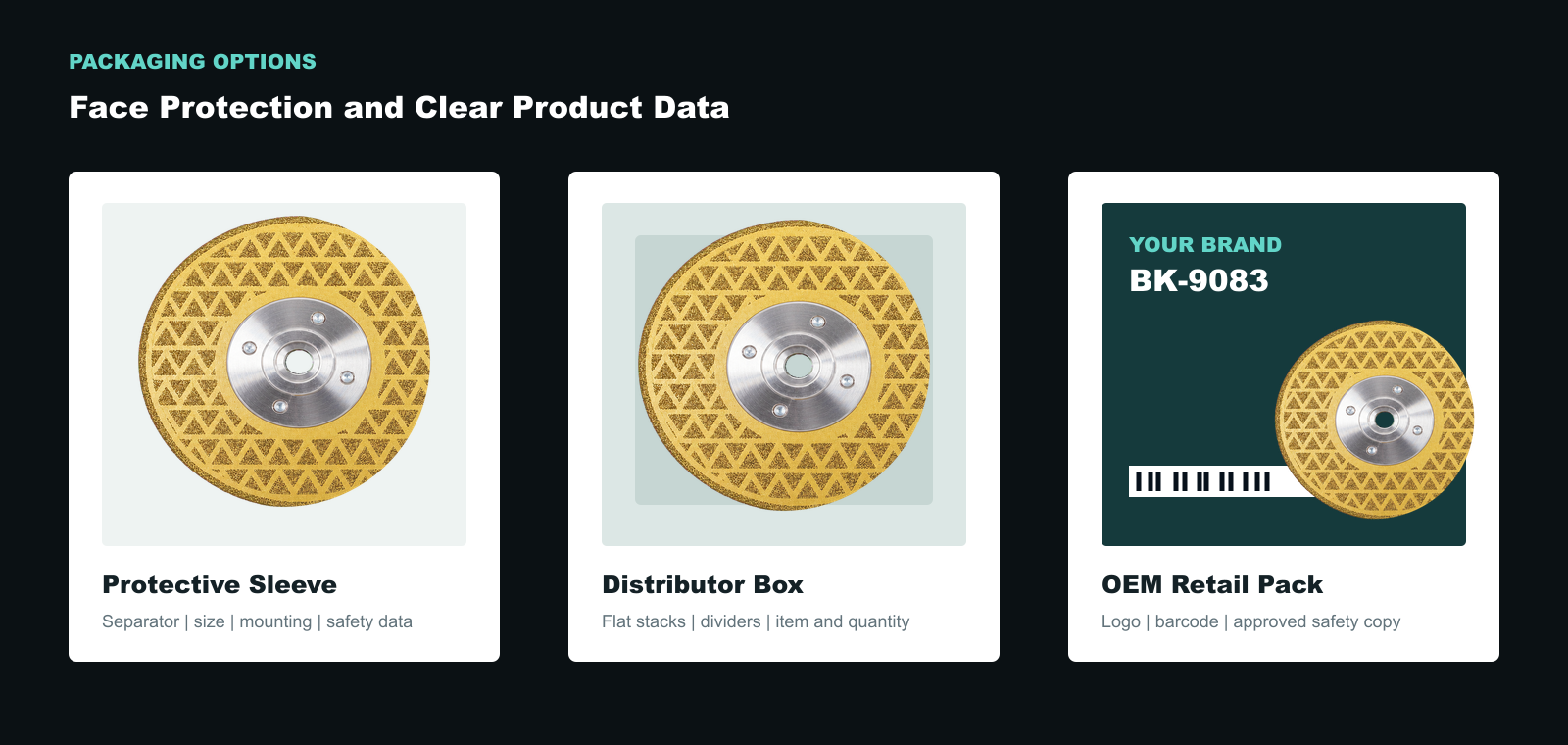

Packaging Options
Protect the Faces and Mounting Hardware
Individual separators and rigid retail packs help protect the abrasive faces and machined center parts. OEM artwork is approved only after the product specification is locked.
Face separator, model, diameter, mounting, speed and safety information.
Separated flat stacks with item label, quantity and handling information.
Buyer logo, barcode, application icons and multilingual safety copy.
1Send RequirementsDiameter, mounting, quantity and destination
2Confirm SampleStructure, flatness and working test
3Approve ArtworkLabel, speed marking and barcode
4Production and QCInspection against approved sample
5Packing DataQuantity, weight and carton dimensions
B2B Inquiry
Build a Clear BK-9083 Request
Enter the basic order details to prepare a professional English inquiry message for the sales team.
Jishan County Boke Diamond Tools FactoryWest of Duanbi Village, Qinghe Town, Jishan County, Yuncheng City, Shanxi Province, ChinaSales contact: +86 137 5398 9893
