Add a clearly specified 110mm slab-cutting blade to professional accessory programs.
110mmOuter DiameterCompact format for compatible guarded stone saws
0.9mmUltra-Thin BodyNarrow kerf for controlled slab processing
10mmBrazed Cutting BandEight broad segments with visible diamond grit
OEMWholesale SupportColor, face print, barcode and export carton
Product Overview
BK-9085 Ultra-Thin Brazed Blade
Developed for large-format sintered stone and dense stone slabs, BK-9085 combines an ultra-thin coated steel body with eight vacuum-brazed diamond segments. The open relief pattern supports debris clearance while preserving a continuous, easy-to-inspect cutting profile.
Supply installers processing sintered stone, porcelain slab and natural stone.
Evaluate edge quality, cutting stability and rim life against an approved sample.
Confirm coating, face artwork, reducer ring, packaging and carton data before production.
Engineering Structure
Thin Kerf. Visible Grit. Controlled Feed.
The approved structure uses a flat 0.9mm body, 20mm center bore, eight broad arc segments and a 10mm vacuum-brazed abrasive band. These features can be measured and visually compared during sample approval and bulk inspection.
- Sintered Stone
- Porcelain Slab
- Marble
- Granite
- Engineered Stone
- Dense Tile
Dense exposed grains create an aggressive cutting surface around each segment.
Narrow radial relief gaps support debris clearance and reduce heat concentration.
A narrow body reduces material removal when the blade is correctly aligned and supported.
Clean mounting geometry supports centered installation on a compatible guarded stone saw.
Close-Up Inspection
Details Buyers Can Approve
Abrasive coverage, segment gaps, center-bore accuracy and face artwork are isolated for sample sign-off and batch comparison.
Cutting EdgeDense Exposed Diamond Grit
Check abrasive distribution, brazing coverage, band width and missing areas against the signed sample.
Segment GeometryClean Relief Gaps
Confirm eight evenly spaced gaps, clean machining and consistent circular geometry.
Mounting and MarkingCentered Bore, Clear Artwork
Confirm bore diameter, circularity, rotation arrow, size marking and approved brand artwork.
Technical Data
Reference Specification

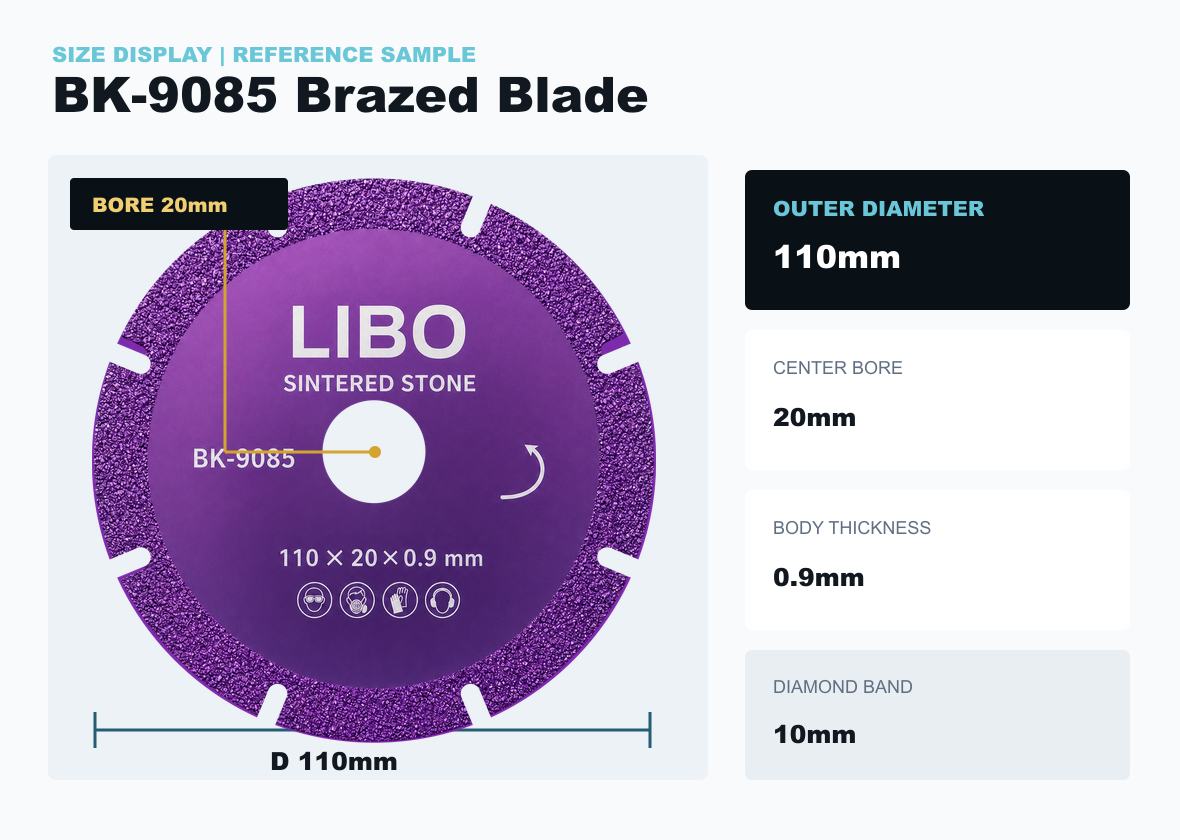

The approved reference is 110 x 20 x 0.9mm with a 10mm abrasive band. A 20-to-16mm reducer ring can be quoted when required, subject to final tool compatibility confirmation.
ModelBK-9085
- Product
- Ultra-Thin Vacuum-Brazed Segmented Diamond Blade
- Reference Size
- 110 x 20 x 0.9mm
- Diamond Band Width
- 10mm
- Segment Layout
- Eight broad arc segments with radial relief gaps
- Primary Materials
- Sintered stone, porcelain slab, marble and granite
- Compatible Tool
- Guarded marble cutter or stone saw matching bore, diameter and rated speed
- Reducer Option
- 20-to-16mm reducer ring, subject to order confirmation
- Customization
- Coating color, LIBO/OEM face print, barcode, sleeve and carton mark
Compatibility noteMatch outer diameter, bore, body thickness, rotation direction, flange condition, guard and marked speed to the tool manufacturer's instructions before use.
Information required for an accurate quotationQuantityColorReducerArtworkPackagingDestination
Application Scenario
Large-Format Slab Cutting
The professional setup uses a compatible guarded marble cutter or stone saw, a supported and clamped slab, controlled straight feed and appropriate personal protective equipment.
Operating note
Use only on a compatible guarded machine. Inspect the blade before installation, support and clamp the slab, keep the baseplate flat, control feed pressure, avoid twisting or side loading, wear eye, hearing, respiratory and hand protection, and never exceed the blade or tool marked speed.
Factory Supply Control
Six Checks Before Packing
Bulk production is compared with the approved sample for dimensions, flatness, abrasive coverage, gap geometry, printing and pack-out data.
Verify 110mm diameter, 20mm bore, 0.9mm body and 10mm abrasive band.
Inspect circularity, visible warpage and ultra-thin core deformation.
Check grain exposure, brazing coverage and missing abrasive areas.
Check eight-gap spacing, edge condition, symmetry and burr control.
Verify brand, model, size, rotation arrow and required safety marks.
Confirm quantity, separators, labels, carton weight and shipping marks.
Packaging Options
Protect the Ultra-Thin Core
Flat separators, rigid inner boxes and reinforced export cartons protect the 0.9mm body, segmented rim and printed face during handling and international transport.
Model, dimensions, materials, rotation direction and safety information.
Flat stacked blades with protective sheets, item number and quantity label.
Buyer logo, approved colors, barcode and multilingual retail information.
1Send RequirementsQuantity, color and destination
2Confirm SampleCut test, flatness and grit quality
3Approve ArtworkFace print, barcode and sleeve
4Production and QCInspection against signed sample
5Packing DataQuantity, weight and carton dimensions
B2B Inquiry
Build a Clear BK-9085 Request
Enter the basic order details to prepare a professional English inquiry message for the sales team.
