Add a clearly specified multi-material disc to general cutting accessory programs.
100mmOuter DiameterCompact size for compatible guarded 100mm angle grinders
20mmMounting BoreClean centered through-hole for compatible mounting flanges
10mmAbrasive Rim WidthVisible working edge with perforated cooling-hole layout
OEMWholesale SupportFace artwork, sleeve, barcode and export carton options

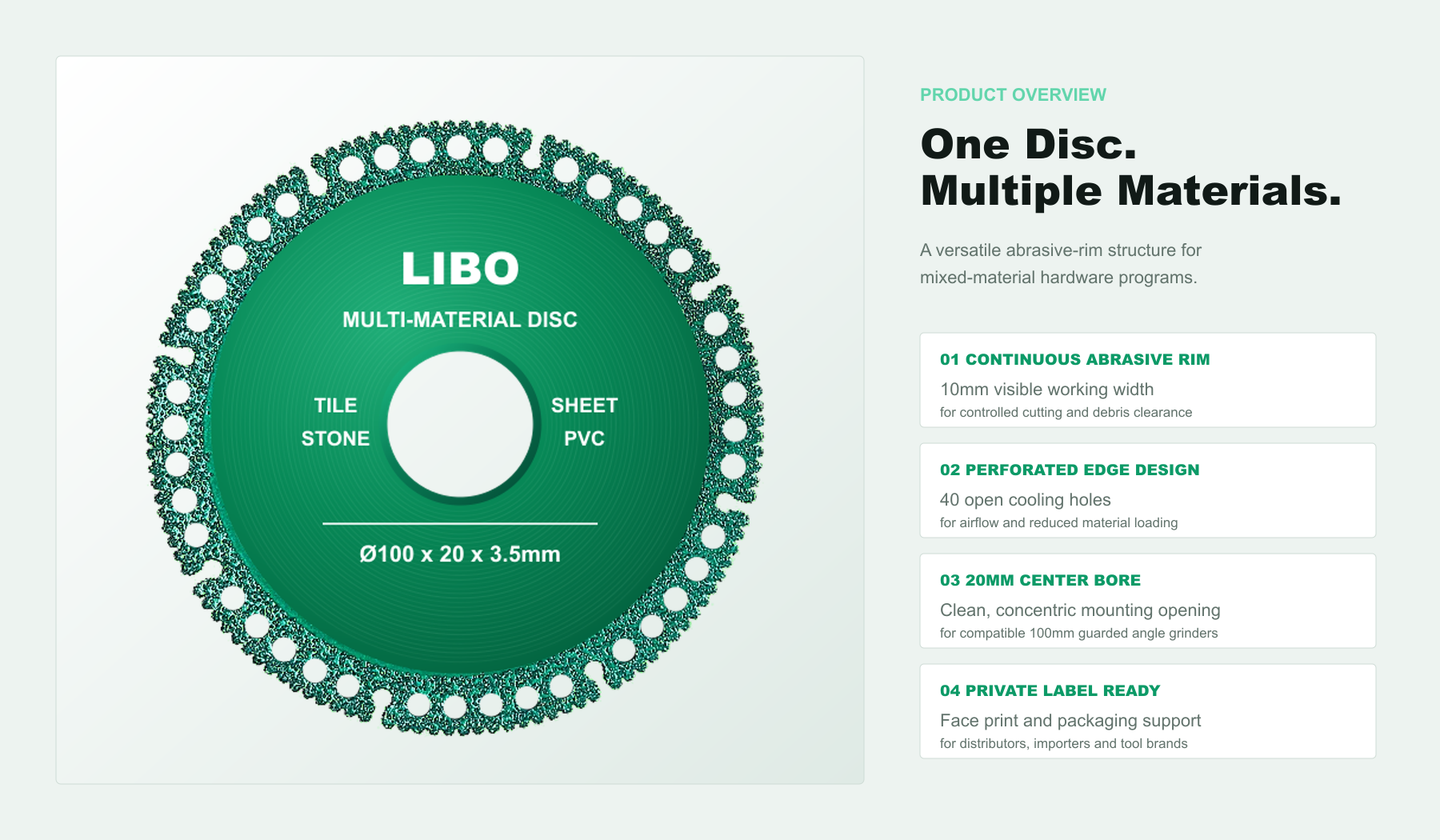

Product Overview

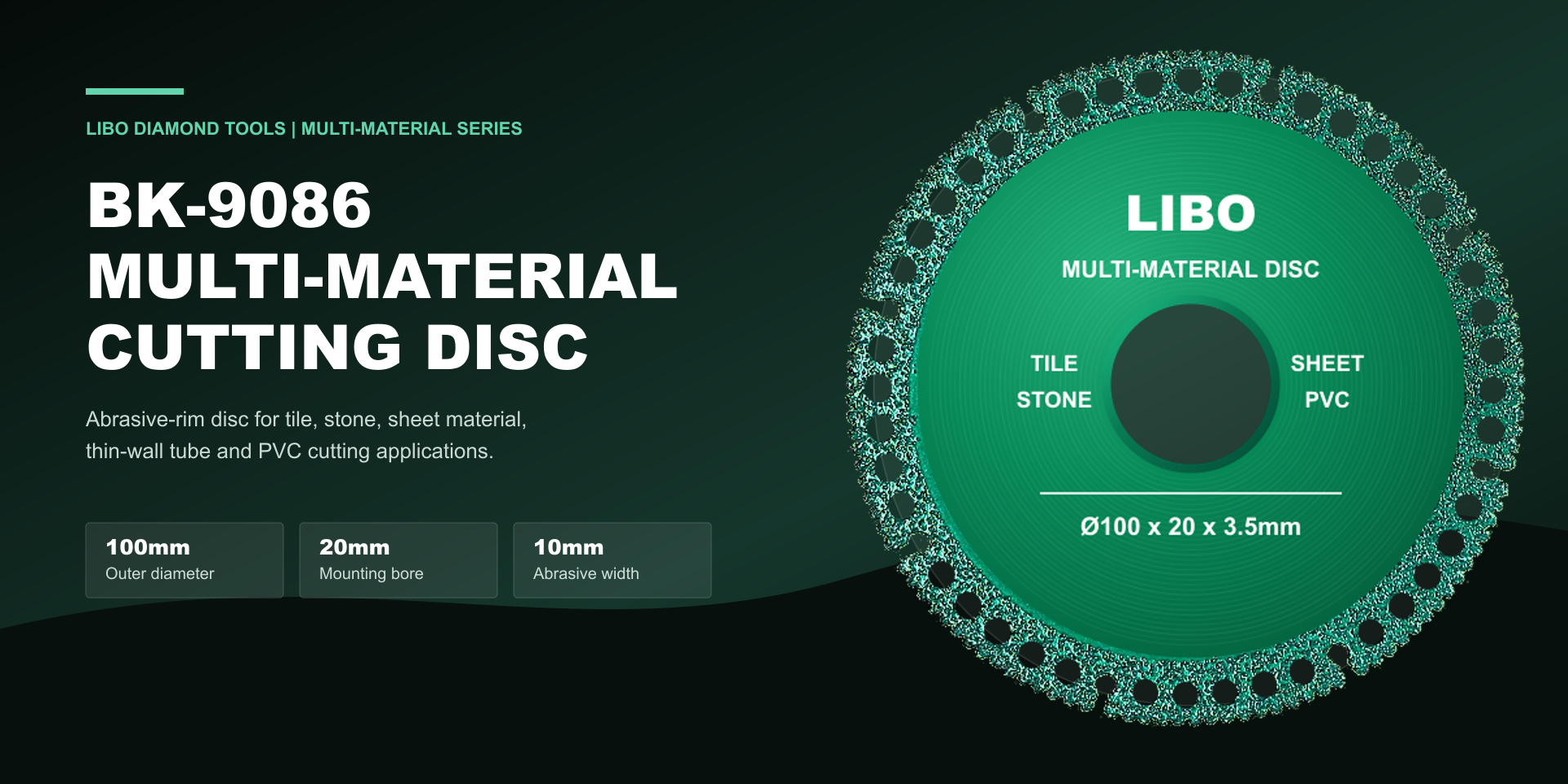

BK-9086 Multi-Material Cutting Disc
Developed for importers, distributors and professional tool programs that need one compact disc across several material categories. The approved product image combines a green steel core, exposed abrasive rim, 40 cooling holes and a 20mm mounting bore.
Offer a compact option for porcelain, sintered stone, glass and mineral surfaces.
Evaluate sheet, thin-wall tube and PVC cutting on representative samples.
Approve face artwork, sleeve design, barcode and export carton before production.
Engineering Structure
Abrasive Edge. Open Cooling Geometry.
BK-9086 uses a perforated outer working area with visible abrasive coverage. The open-hole arrangement supports airflow and debris clearance while the centered bore provides a clear mounting reference for incoming inspection.
- Porcelain Tile
- Sintered Stone
- Glass
- Sheet Material
- Thin-Wall Tube
- PVC / Plastic
Visible abrasive coverage around the cutting edge supports consistent sample and batch inspection.
Evenly distributed open holes provide airflow and debris-clearance paths around the working edge.
The clean through-hole allows buyers to verify diameter, concentricity and mounting compatibility.
Model, material range, dimensions, direction and safety data can be customized for target markets.

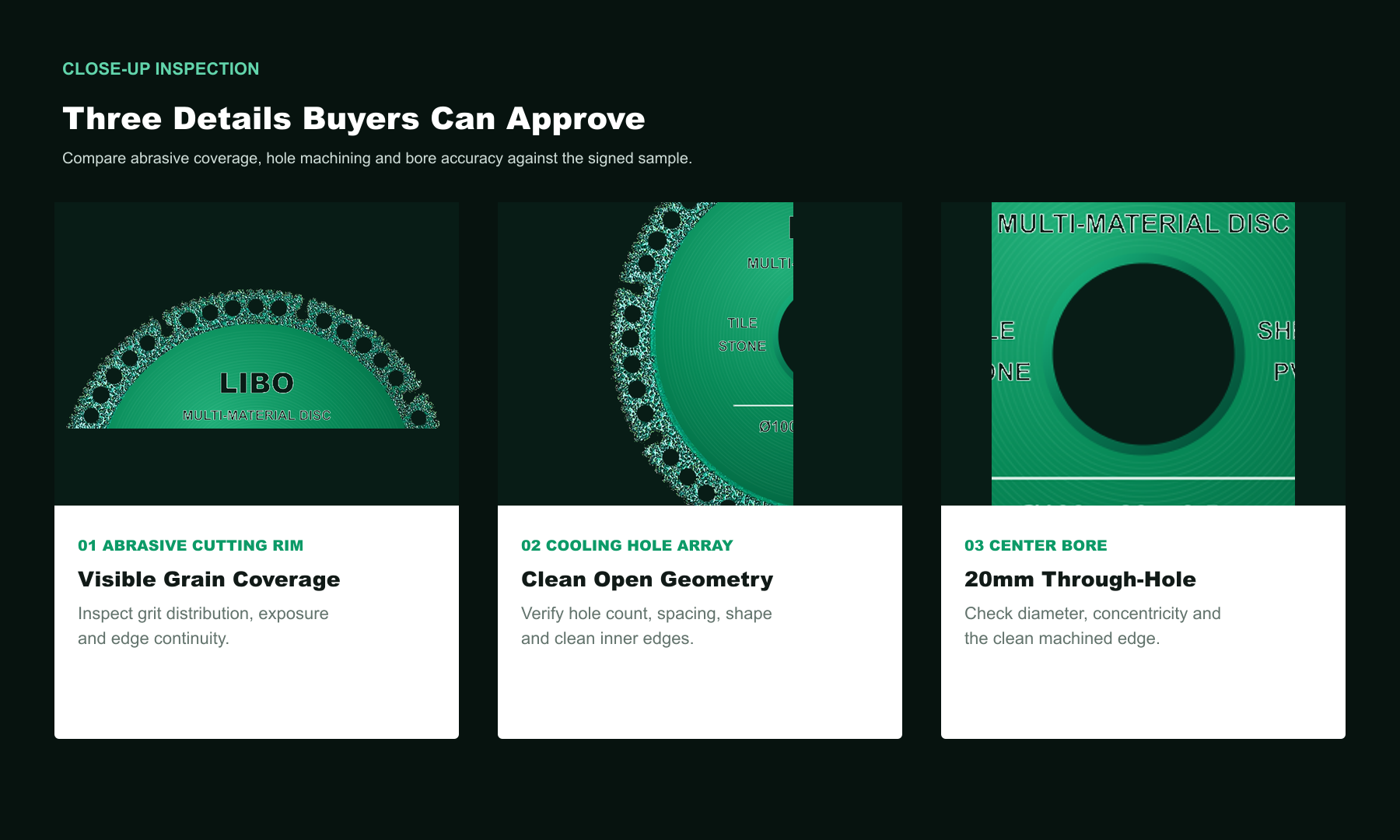

Close-Up Inspection
Details Buyers Can Approve
Abrasive coverage, cooling-hole geometry and center-bore accuracy are isolated for sample sign-off and bulk comparison.

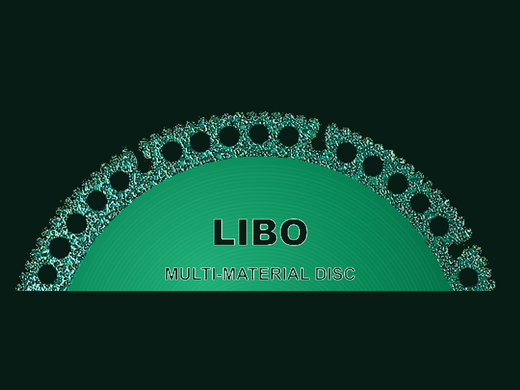

Abrasive SurfaceVisible Grain Coverage
Inspect distribution, exposed grain, edge continuity and missing abrasive areas.

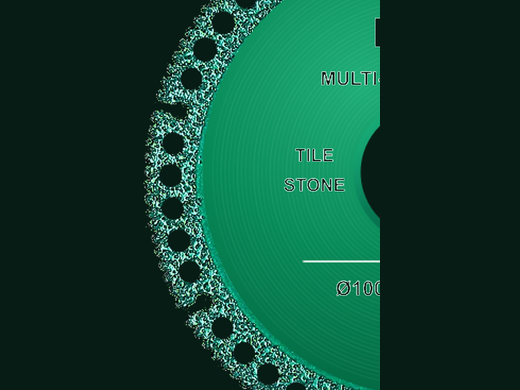

Perforated StructureClean Open Geometry
Confirm hole quantity, spacing, shape and clean inner edges against the signed sample.

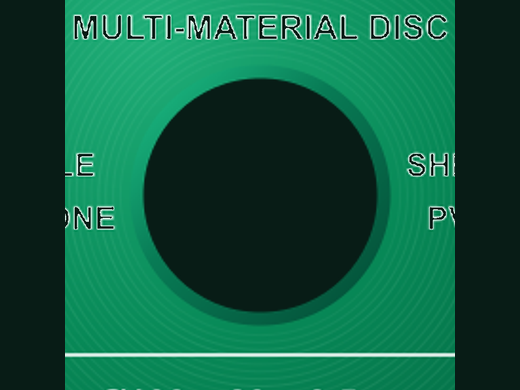

Mounting Feature20mm Through-Hole
Verify bore diameter, circularity, concentricity and flange compatibility before use.

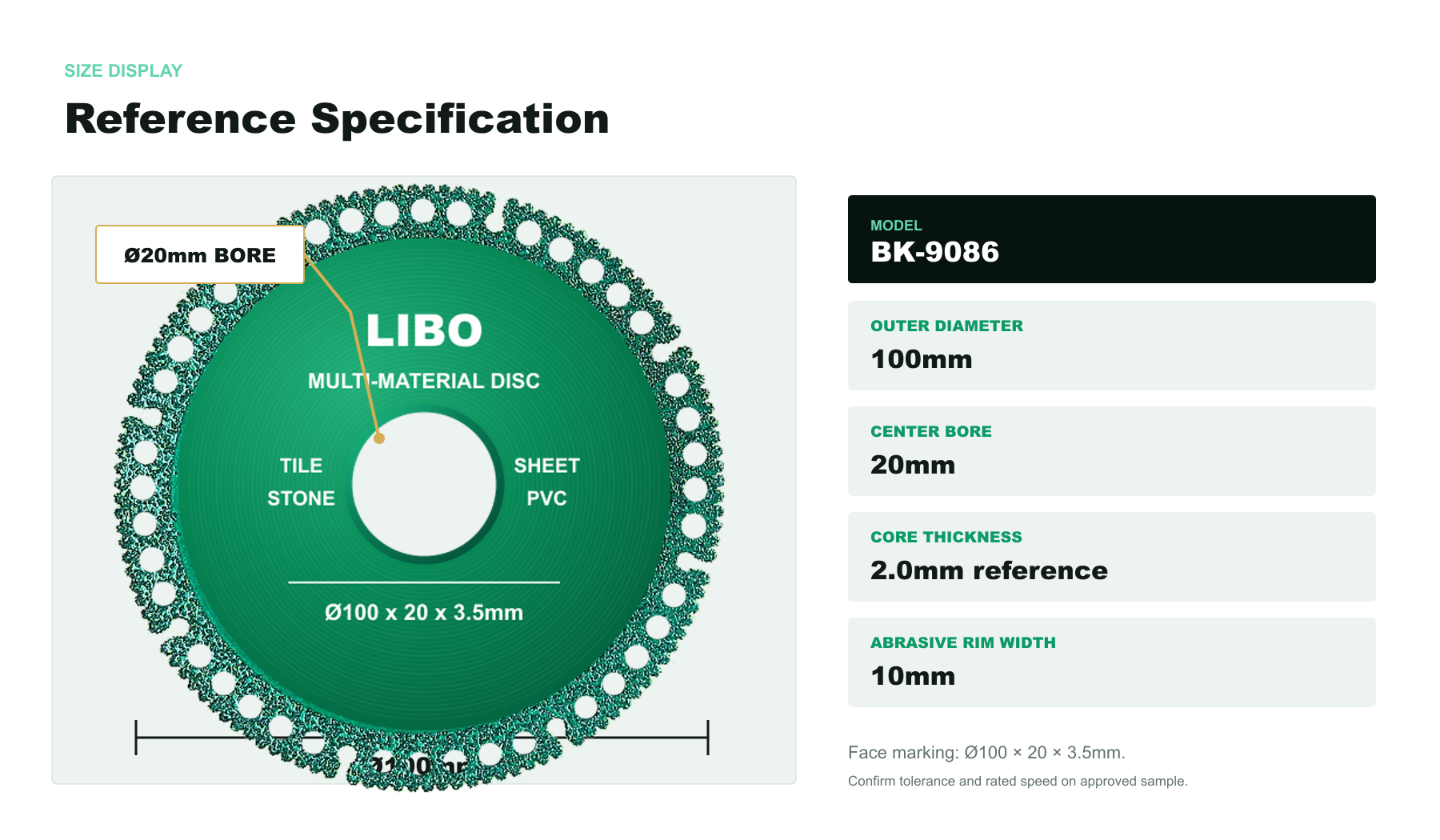

Technical Data
Reference Specification
The product face is marked Ø100 × 20 × 3.5mm. The supplied reference also lists a 10mm abrasive width and 2mm steel-core thickness. Production tolerance, grit specification and rated speed should be confirmed on the approved sample.
ModelBK-9086
- Product
- Multi-Material Cutting Disc
- Face Marking
- Ø100 × 20 × 3.5mm
- Outer Diameter
- 100mm
- Center Bore
- 20mm through-hole
- Core Thickness
- 2.0mm reference
- Abrasive Rim Width
- 10mm reference
- Cooling Layout
- 40 open holes around the abrasive edge
- Compatible Tool
- Guarded 100mm angle grinder matching bore and rated speed
- Material Range
- Tile, stone, glass, sheet material, thin-wall tube and PVC
- Customization
- LIBO/OEM face artwork, sleeve, barcode and carton mark
Compatibility noteMatch disc diameter, bore, flange, guard and maximum operating speed to the tool manufacturer's instructions. Material suitability must be verified by sample testing.
Information required for an accurate quotationQuantityTarget materialArtworkPackagingDestinationMarket standard
Application Range
Six Material Categories
The material board shows the intended purchasing categories. Before bulk production, test the exact disc specification on representative customer materials and confirm cutting quality, life and feed rate.
Operating note
Use only on a compatible guarded angle grinder. Inspect the disc before installation, support and clamp the workpiece, keep the tool controlled, avoid twisting or side loading, wear eye, hearing, respiratory and hand protection, and never exceed the marked disc or tool speed.
Factory Supply Control
Six Checks Before Packing
Bulk production is compared with the approved sample for dimensions, flatness, hole geometry, abrasive coverage, artwork and pack-out data.
Verify diameter, bore, core thickness and abrasive-rim width.
Inspect circularity, visible warpage and steel-core deformation.
Check abrasive distribution, exposure and edge continuity.
Confirm hole quantity, spacing, shape and clean open edges.
Verify brand, model, dimensions, direction and safety information.
Confirm quantity, separators, labels, carton weight and dimensions.

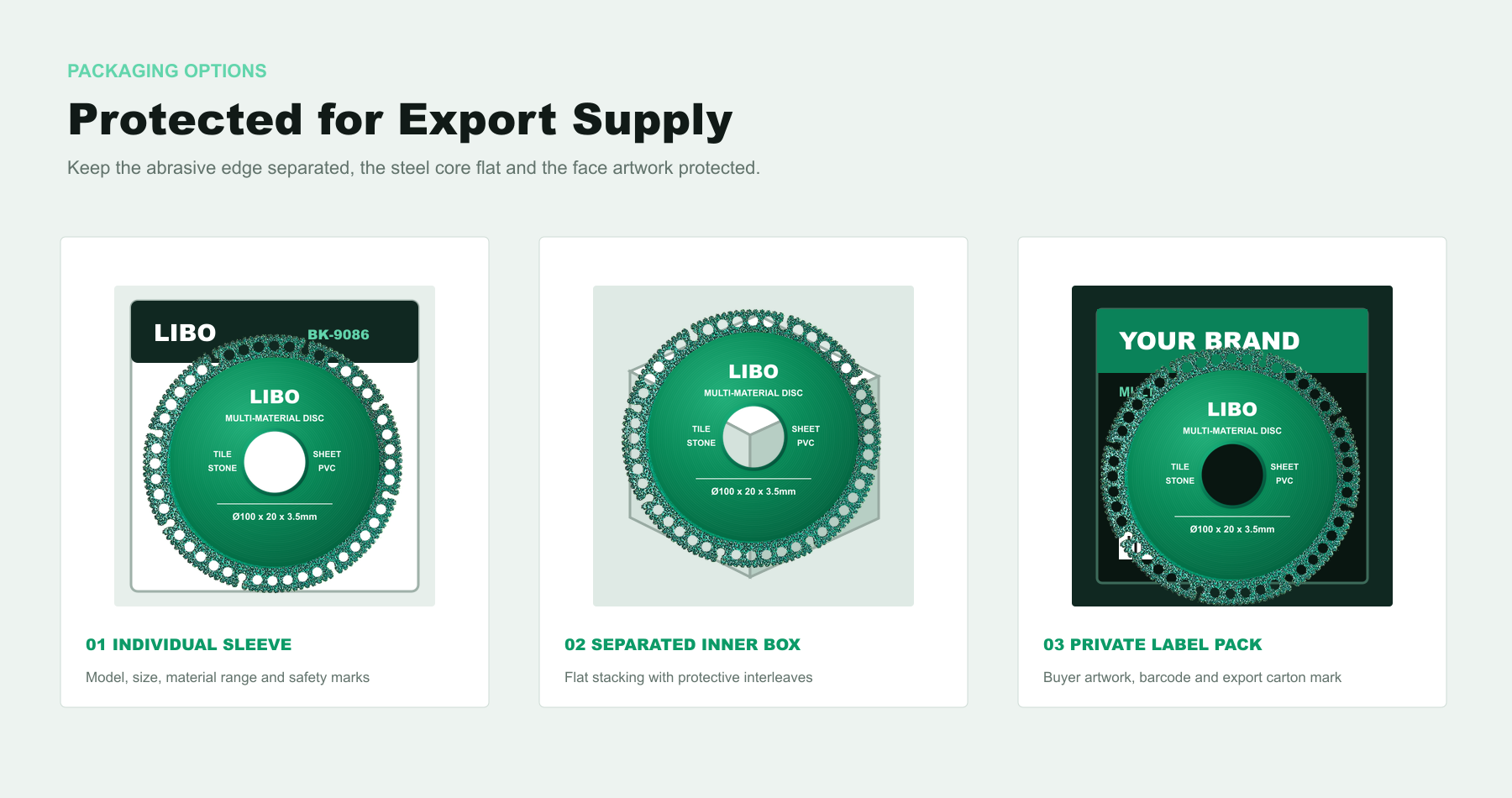

Packaging Options
Protected for Export Supply
Protect the abrasive edge, keep the steel core flat and prevent printed-face abrasion during international handling and transport.
Model, dimensions, material range, direction and safety information.
Flat-stacked discs with protective interleaves and quantity label.
Buyer logo, approved artwork, barcode and multilingual retail data.
1Send RequirementsQuantity, material and destination
2Confirm SampleDimensions and cutting test
3Approve ArtworkDisc face, barcode and sleeve
4Production and QCInspection against signed sample
5Packing DataQuantity, weight and carton size
