Add a clearly specified cutting and edge-working disc to tile and countertop programs.
100mmOuter DiameterCompact format for compatible guarded angle grinders
20mmCenter BoreClear mounting reference for matching flanges
15mmWorking WidthWide vacuum-brazed face for cutting and edge work
OEMWholesale SupportArtwork, sleeve, barcode and export-carton options
Product Overview
BK-9087 Vacuum-Brazed Cutting + Grinding Disc
Built for importers, stone-tool distributors and professional accessory programs that need one compact disc for straight cutting, edge chamfering and controlled surface correction across hard materials.
Source a compact vacuum-brazed accessory with inspection-ready dimensions.
Evaluate controlled burr removal and cutting on representative cast-iron samples.
Approve product finish, face artwork, sleeve, barcode and carton data before production.
Engineering Structure
Wide Abrasive Face. Thin Steel Core.
The outer working area uses visible vacuum-brazed abrasive coverage. Eight evenly spaced relief slots interrupt the rim for debris paths and thermal movement, while the centered bore provides a clear mounting and inspection reference.
- Porcelain Tile
- Ceramic
- Granite
- Marble
- Glass
- Cast Iron
Random fused abrasive texture provides visible coverage for signed-sample and batch comparison.
The wide outer face supports cutting, chamfering and controlled edge correction.
Even radial spacing provides open paths around the working rim for debris and heat management.
The clean through-hole allows diameter, circularity and concentricity checks before packing.
Close-Up Inspection
Details Buyers Can Approve
Abrasive bonding, slot geometry and center-bore accuracy are isolated for sample approval and bulk-production comparison.

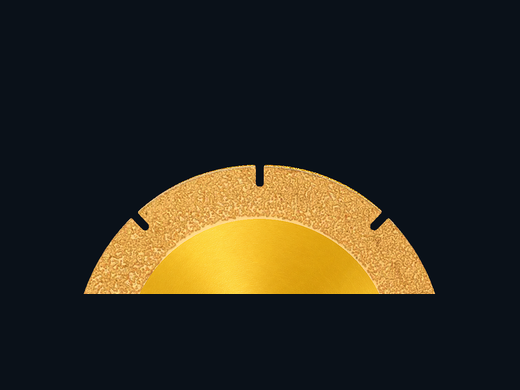

Abrasive SurfaceRandom Fused Texture
Inspect grain distribution, exposed cutting points, bonded coverage and missing abrasive areas.

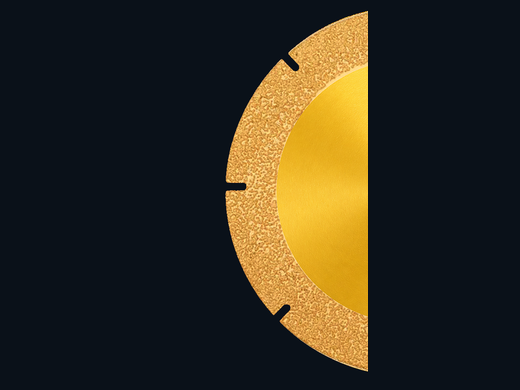

Relief GeometryEight Clean Slots
Confirm slot count, radial spacing, opening width and smooth rounded ends.

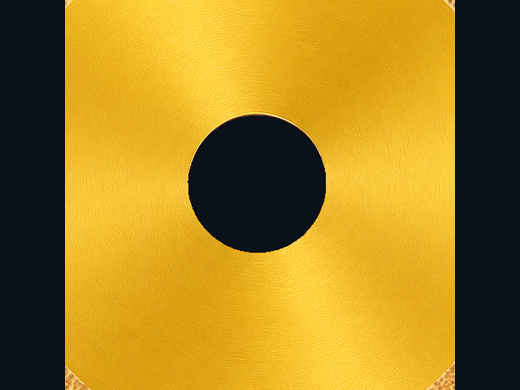

Mounting Feature20mm Through-Hole
Verify bore diameter, circularity, concentricity and compatibility with the intended mounting flange.
Technical Data

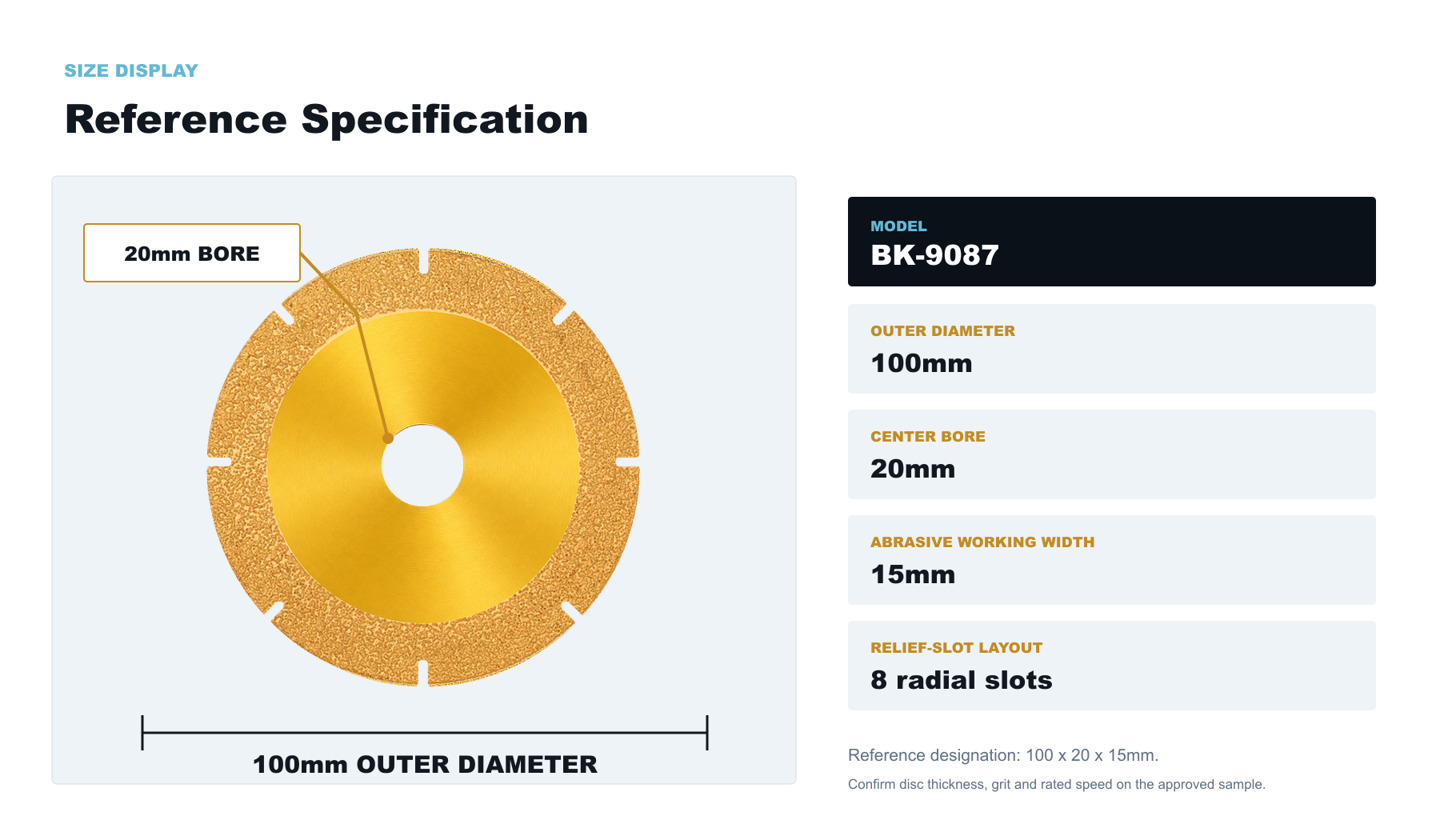

Reference Specification
The supplied product reference identifies a 100mm outer diameter, 20mm center bore and 15mm abrasive working width. Disc thickness, grit specification, tolerance and rated speed should be confirmed on the approved production sample.
ModelBK-9087
- Product
- Vacuum-Brazed Cutting and Grinding Disc
- Reference Size
- 100 x 20 x 15mm
- Outer Diameter
- 100mm
- Center Bore
- 20mm through-hole
- Abrasive Working Width
- 15mm reference
- Relief Layout
- 8 evenly spaced radial slots
- Process
- Vacuum-brazed abrasive on steel core
- Compatible Tool
- Guarded angle grinder matching diameter, bore and rated speed
- Material Range
- Tile, ceramic, granite, marble, glass and cast iron
- Customization
- LIBO/OEM finish, face artwork, sleeve, barcode and carton mark
Compatibility noteMatch disc diameter, bore, flange, guard and maximum operating speed to the tool manufacturer's instructions. Validate each target material by controlled sample testing before bulk purchase.
Information required for an accurate quotationQuantityTarget materialGritArtworkPackagingDestination
Application Scenarios
Three Professional Workflows
The following scenes show the intended purchasing categories. Final performance must be tested on the customer's material, tool, feed rate and working method.
Straight CuttingPorcelain and Ceramic Tile
Controlled straight cuts on supported slabs with the guard, flange and workpiece correctly positioned.
Edge WorkingGranite and Engineered Stone
Shallow-angle chamfering and edge correction on securely supported stone workpieces.
Industrial FinishingCast-Iron Burr Removal
Controlled removal of casting gates and local burrs on clamped industrial components.
Operating note
Use only on a compatible guarded angle grinder. Inspect the disc before installation, support and clamp the workpiece, avoid twisting or uncontrolled side loading, wear eye, face, hearing, respiratory and hand protection, and never exceed the marked disc or tool speed.
Factory Supply Control
Six Checks Before Packing
Bulk production is compared with the approved sample for dimensions, flatness, abrasive bonding, slot geometry, bore accuracy and pack-out data.
Verify outer diameter, center bore and abrasive working width.
Inspect circularity, visible warpage and steel-core deformation.
Check bonded coverage, grain distribution and missing abrasive.
Confirm count, radial spacing, opening width and clean ends.
Verify diameter, circularity, concentricity and clean machining.
Confirm quantity, separators, labels, carton weight and dimensions.
Packaging Options
Protected for Export Supply
Separate abrasive faces, protect the thin steel core from bending and prevent approved artwork from rubbing during international handling.
Model, dimensions, material range, direction and safety information.
Flat-stacked discs with protective interleaves and a clear quantity label.
Buyer logo, approved artwork, barcode and multilingual retail data.
1Send RequirementsQuantity, material and destination
2Confirm SampleDimensions and application test
3Approve ArtworkDisc face, barcode and sleeve
4Production and QCInspection against signed sample
5Packing DataQuantity, weight and carton size
B2B Inquiry
Build a Clear BK-9087 Request
Enter the basic order details to prepare a professional English inquiry message for the sales team.
