Dense Diamond Exposure
Irregular diamond grains remain exposed at the cutting edge for direct contact with the work surface.
Electroplated Diamond Series
BK-9091
Electroplated Diamond
Glass Hole Saw
Clean wet drilling for glass, porcelain tile, ceramic, marble and decorative stone. A broad 3-200mm supply range supports retail assortments and project orders.
Nickel-plated steel body

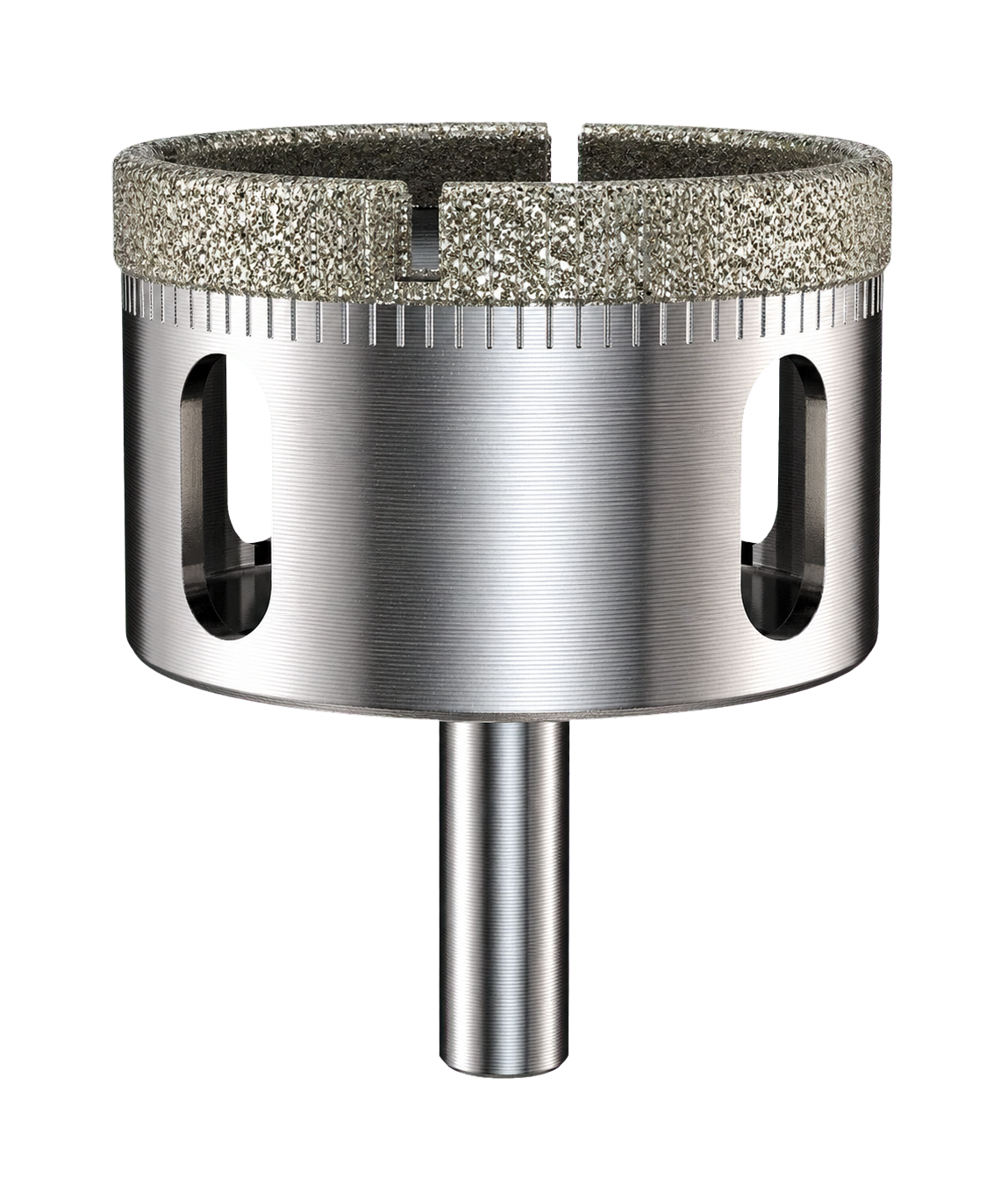

70mm display sample
70mm display sample
Electroplated Diamond RimExposed abrasive grains for efficient wet drilling.
Precision Steel CupNickel-plated body with visible machined finish.
Open-Core CuttingSide slots support water flow and core removal.
Factory B2B SupplySize selection, private label and carton support.
Product Engineering
Built for Clean Holes in Hard Decorative Materials
BK-9091 combines a rigid nickel-plated steel cup with an electroplated diamond cutting rim. The open-core design is intended for water-cooled drilling where edge quality and controlled material removal matter.
Coolant & Debris Slots
Elongated side openings support water circulation, chip discharge and core removal.
Machined Round Shank
Straight-shank structure fits standard drill chucks; shank dimensions vary by product size.
Wide Size Coverage
The 3-200mm diameter range supports fine glass work, installation and large project openings.
Detail Inspection
Every Functional Area Is Visible
Close-up views help buyers check the abrasive rim, cup machining, coolant slots and shank structure before ordering samples.
Electroplated Cutting RimShort, dense abrasive band with visible mineral texture.
Dual Side OpeningsImproved water access and easier core discharge.
Nickel-plated Cup BodyFine lathe lines show the machined steel construction.
Straight Round ShankDesigned for drill chuck clamping; confirm shank by diameter.
Size Display
3-200mm Diameter Supply Range
Small and large diameters use the same electroplated cutting principle, while cup depth, shank and body proportions are confirmed according to the selected size.
3mmSlim Core Tube
20mmSingle Window
70mmDisplay Sample
150mmLarge Cup Body
200mmMaximum Range
Size-specific product structures are shown for buyer reference. Total length is approximately 52mm for 3-18mm and 55mm for 19-200mm; confirm shank and body details in the quotation.
Series Specification
- Model
- BK-9091
- Product
- Electroplated Diamond Glass Hole Saw
- Diameter Range
- 3-200mm
- Body
- Nickel-plated steel
- Cutting Edge
- Electroplated diamond grit
- Operation
- Wet drilling recommended
70mm Display Sample
| Hole Diameter | 70mm |
|---|---|
| Drilling Depth | 30mm |
| Total Length | 55mm |
| Shank Diameter | 10mm |
| Shank Type | Straight round shank |
| Other Sizes | Dimensions confirmed by diameter |
Application Scenarios
Wet Drilling for Glass, Tile and Stone
The electroplated rim should face the material. Keep the cutting area supplied with water and use a stable guide for large diameters.
Tool Compatibility
Match the Tool to the Diameter
Use a standard electric drill, drill press or dedicated glass drilling equipment. Do not use hammer mode. Large diameters require more stable guidance and sufficient coolant.
D
Electric Drill
Suitable for controlled handheld wet drilling with a guide or angled start.
P
Drill Press
Improves vertical alignment, feed control and repeatability for workshop use.
W
Water Cooling
Continuous coolant reduces heat, clears abrasive debris and supports edge quality.
0
No Hammer Mode
Use rotary drilling only; impact action can damage glass and brittle surfaces.
Recommended Workflow
Four Steps for Controlled Wet Drilling
- 01Secure the WorkpieceSupport the material and mark the hole location.
- 02Guide the EntryUse a drilling guide or begin with a controlled angled contact.
- 03Keep Water FlowingMaintain coolant at the rim throughout drilling.
- 04Use Light FeedLet the abrasive cut; avoid excessive pressure and impact.
Packaging Options
Prepared for Wholesale and Private Label
Final packing depends on diameter, quantity and destination market. Product protection and clear size identification are prioritized for mixed-size orders.
Bulk Protection Pack
Individual protection, inner box and export carton for distributor orders.
LIBO
Retail Color Box
Brand, barcode, size, application and safety data can be arranged.
BK-909170 mmElectroplated Glass Hole Saw
OEM Size Label
English label, customer artwork and carton mark support after confirmation.
BOKEDIAMOND TOOLSSIZE / QTY / N.W. / G.W.
Export Carton
Size-separated inner packing and buyer carton marks for shipment control.
B2B Inquiry
Request Price, MOQ and Packing Data
Send the required diameters, quantity per size, destination country, packaging choice and target market. We will prepare a quotation based on the confirmed specification.
Suggested Inquiry Message
Hello, I am interested in BK-9091 Electroplated Diamond Glass Hole Saw. Please quote the following diameters and provide MOQ, sample price, shank data, drilling depth, packaging options and carton information.
